Your position: Home > Case-kit for Hypex > (D315c-Q1) DIY 4CH Case-kit for Hypex 2 x NC502MP

1/1

(D315c-Q1) DIY 4CH Case-kit for Hypex 2 x NC502MP

Name: (D315c-Q1) DIY 4CH Case-kit for Hypex 2 x NC502MP
Brand: ghentaudio Do something for HiFi Fans
Price: 255 USD
Availability: InStock

0.0 (0)

3 Sold

$255.00

D-series 4CH case-kit, applicable modules are:
------ 2 x NC502MP
------ It's a solderless kit if choosing screw-type XLR :)
------ Custom drilling for other suitable modules

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Face-plate:
LED color:
XLR Type:

Quantity:

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: D315c-Q1 (D-series Encloser)
100% Aluminum, the best thermal material for amp

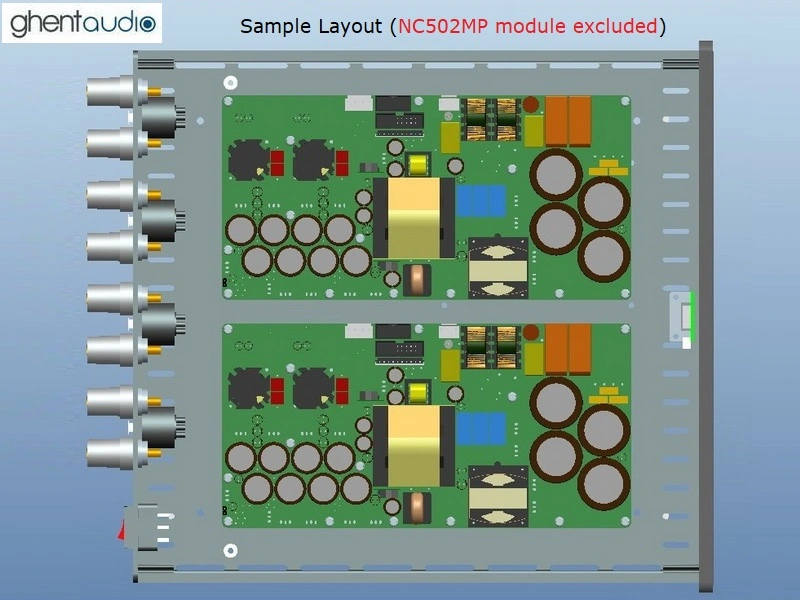

4CH case pre-drilled for 2 x NC502MP (case-kit excluding any modules)

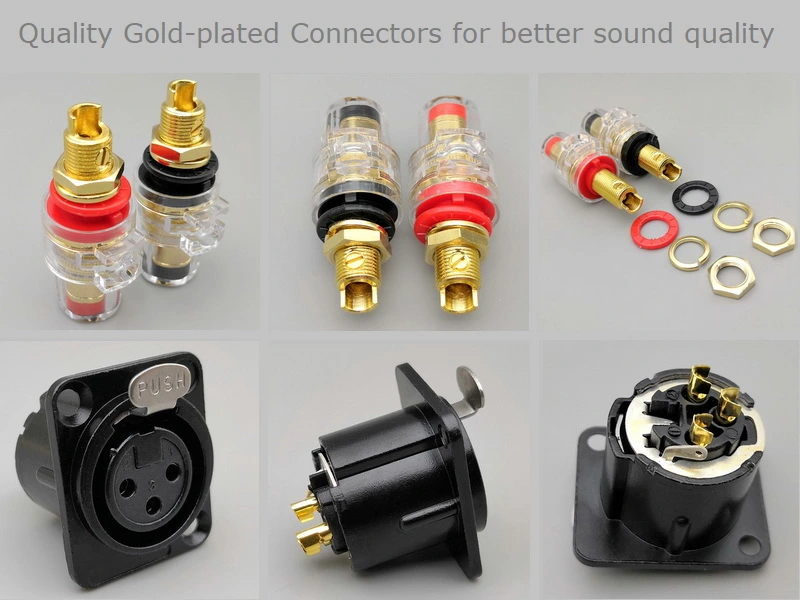

Input: we provide two kinds of XLR options：
--- Soldering XLR: GP110 Gold-plated XLR socket
--- Screw-Type XLR: GP119 Neutrik Gold-plated XLR socket
Output: GP100 Gold-plated Binding posts, support soldering or screw-type
Solderless: It would be a solderless kit if choosing screw-type XLR :)

Internal Harness (Free included)

Mains wires: 1:2 y-cable from AC-Inlet to PSUs
Signal wires: XLR socket to amp-module
Speak wires: from amp-module to Binding Posts

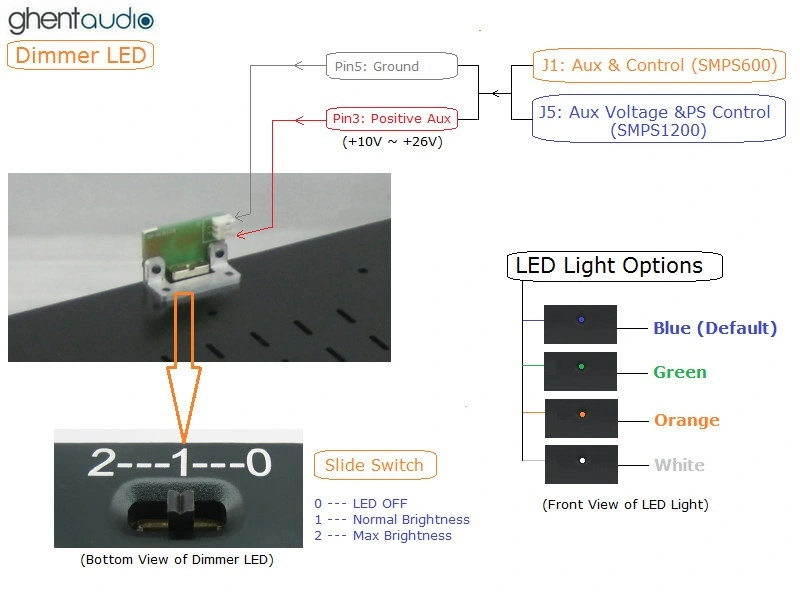

LED wire: from PSU to LED module

Case Specification

Internal size: 288mm(W) x 75mm(H) x 315mm(D)
External size: 300mm(W) x 100mm(H) x 326mm(D)
(External size including feet, excluding connectors)

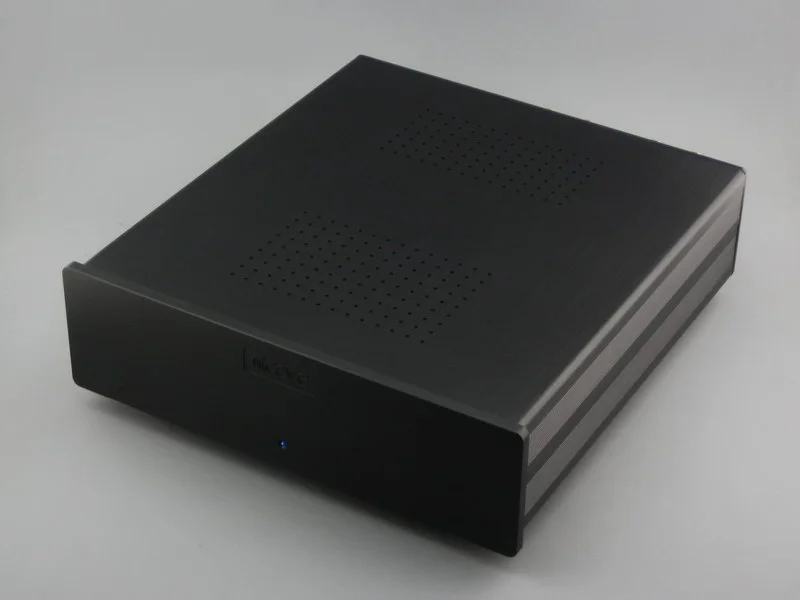

Case Finish: Full-Black or Silver-Face with Black body
LED: Blue/Green/Orange/White(Brightness adjustable)

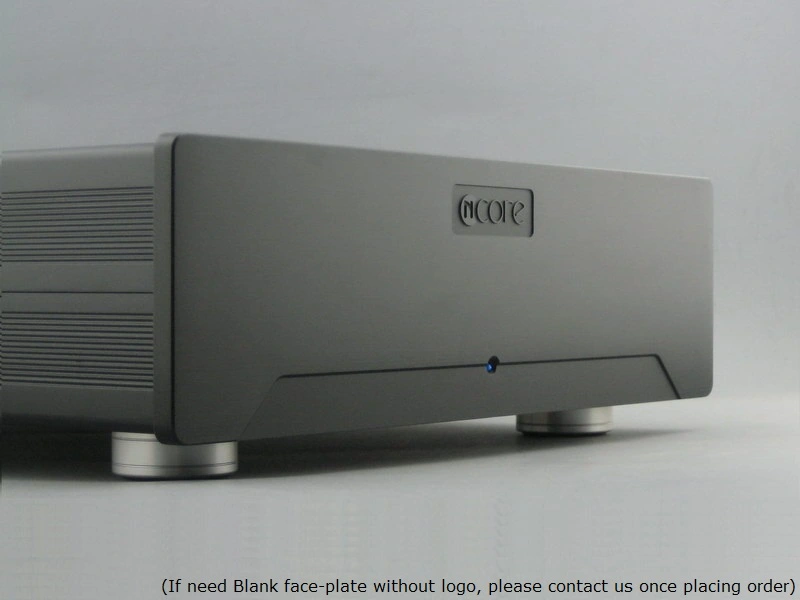

Face-plate: 8mm thickness
Top-cover: 5mm thickness, venting holes or slots
Bottom-plate: 5mm thickness, pre-drilled for modules

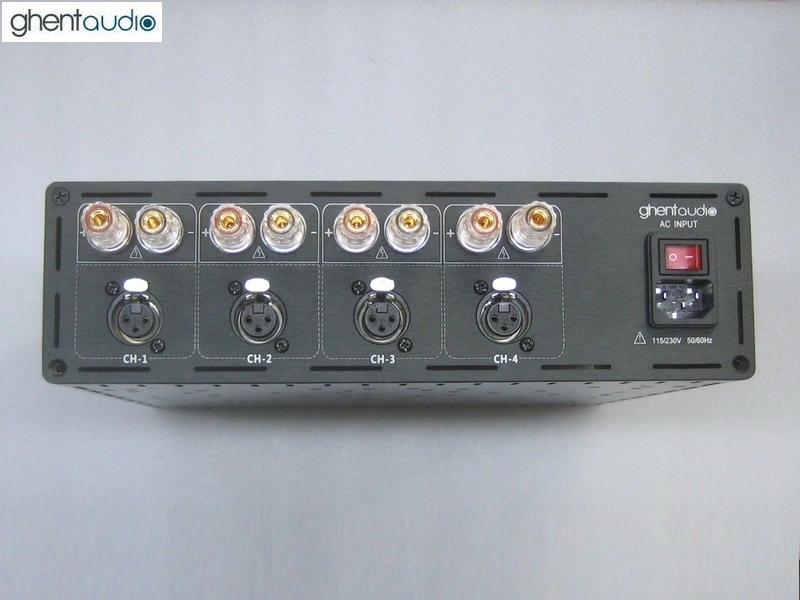

Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 XLR socket x 4 Binding Post(Pair) x 4 Dimmer-LED x 1 Internal Harness
