General Description

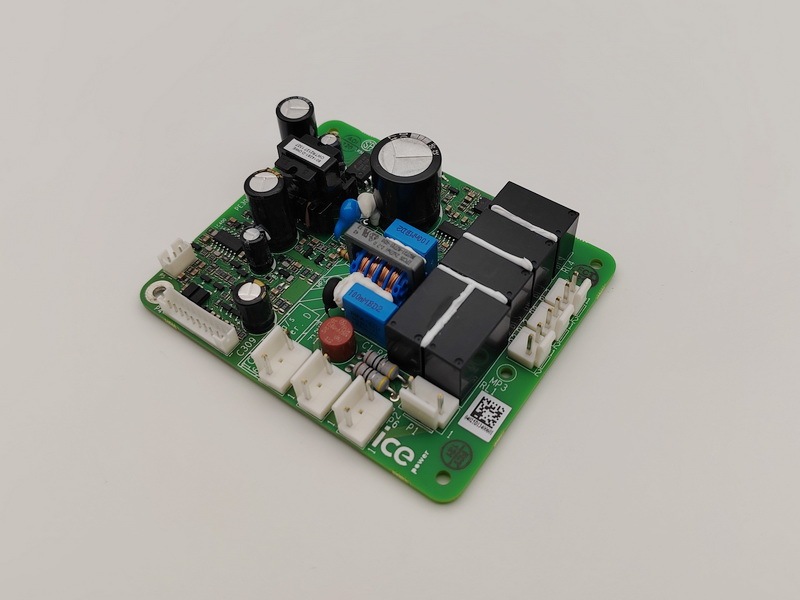

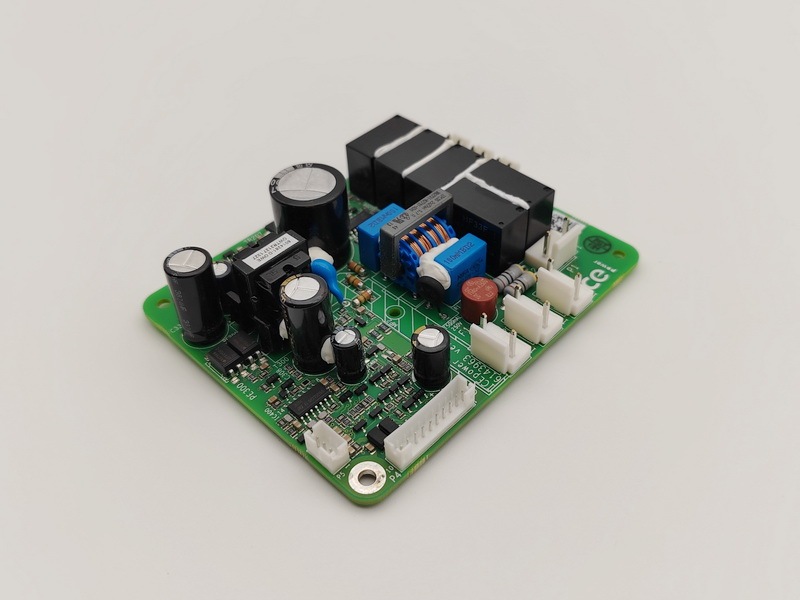

ICExtend is a standby converter module designed to serve as frontend to ICEpower standard modules which have no on board standby functionality. The standby converter fulfills the ErP (1275/2008/EC) regulation by maintaining 0.5W in Standby mode while supporting minimum 50mA customer payload.
Along with standby functionality, ICExtend has wake-on-signal functionality triggered by an audio signal or a 3-5V/12V trigger which turns the amplifier on and off. In addition, a 5V auxiliary output capable of supplying up to 1A makes it easy and convenient to drive e.g. a DSP or microprocessor directly from the module.
Furthermore, the module includes universal mains functionality. It automatically detects the mains voltage and switches the attached module between full bridge rectifications at 230 volt mains and half bridge voltage doubler rectification at 115 volt mains. Thereby, it eliminates your need to stock both 115V and 230V mains product variants saving you essential warehouse and logistics costs.
Brief Specifications
- Universal mains and standby converter frontend to ICEpower modules
- Auxiliary +5V power supply
- ErP (1275/2008/EC) compliant standby consumption
- Full compatibility with ASX2 series and ICEtheater7
- ASP series supported with standby converter and wake-on-signal
- Supports up to three amplifiers
- Intelligent inrush control
- Wake on signal
