RTX Module (RCA to XLR converting)

SKU:
0.0 (0)
57 Sold
$30.00 $0.00
--- If pre-amp with RCA Output only, RTX convert to Balanced signals

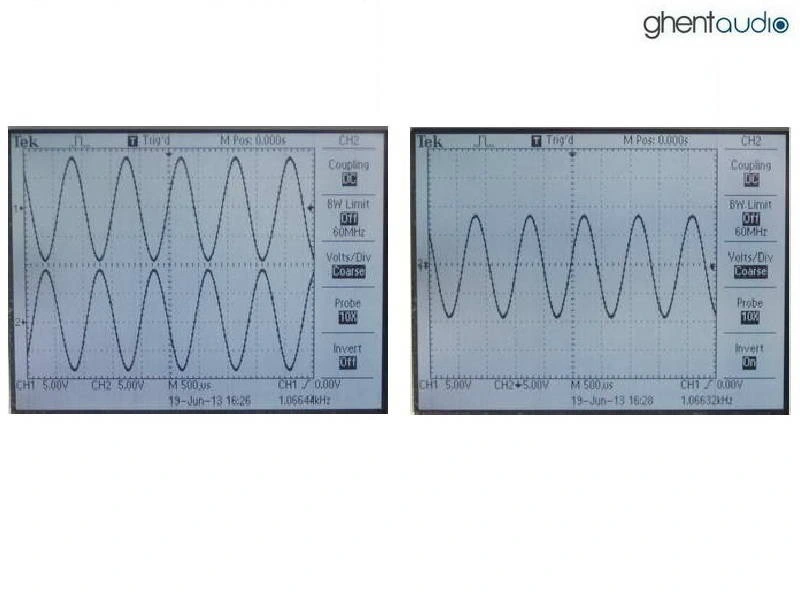

--- Well designed circuit for converting unbalanced to balanced signals
--- Each RTX support 1/ch converting, two RTX modules for Stereo
--- ±24 or ±12V supplied from AUX, no extra noise from ext. PSU
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    Please select the information you wantX
Quantity:
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • RTX Module (RCA->XLR) Version 5.1
  • Description
Main Features

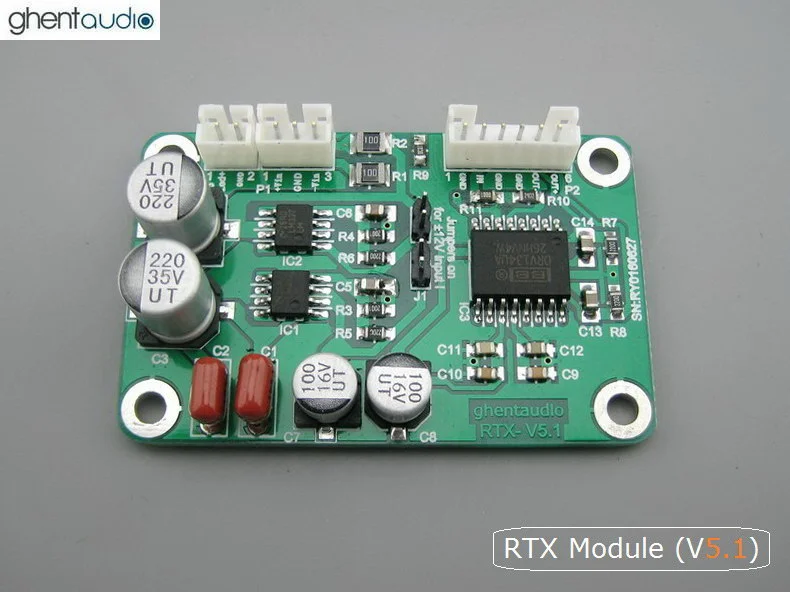

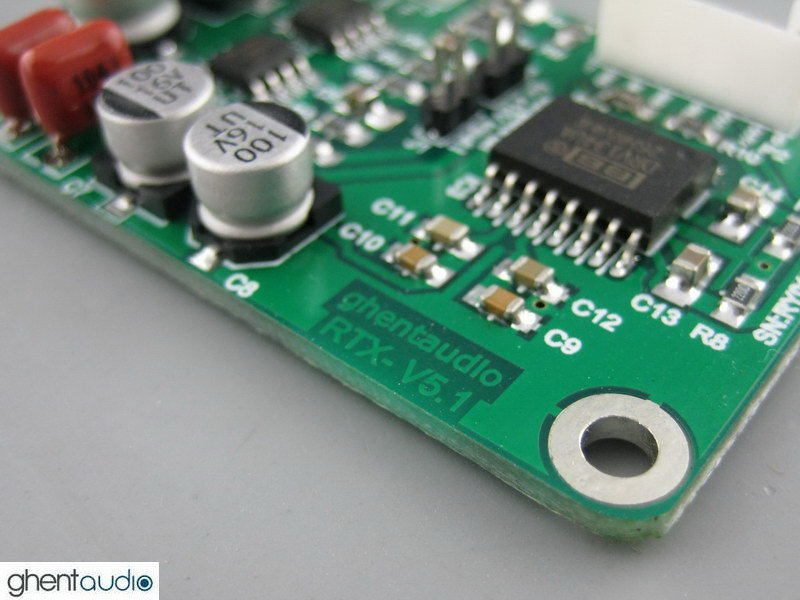

  • Version 5.1
  • Well designed circuit for unbalanced to balanced purpose, suitable for any unbalanced to balanced audio project
  • One RTX module support 1/ch RCA Mono input, so two RTX modules for Stereo requirements
  • ±24 or ±12V free converting, supplied from AUX of class-D modules, no extra noise from external power supply
  • DC out for LED light (please put a resistor in series)

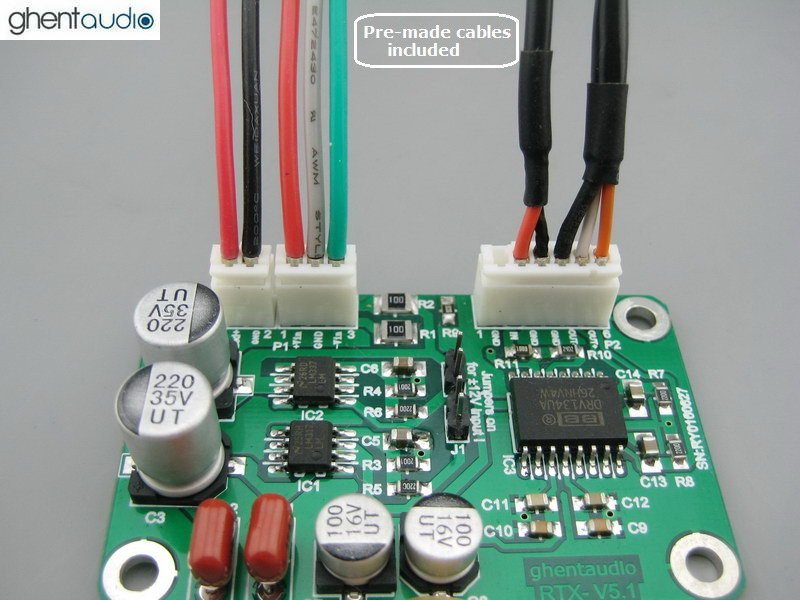

  • All needed Jumpers/cables/brass studs/screws are provided together

Brief Specifications

  • Chipset: BB DRV134
  • Input Impedance: 10K or 100K
  • Gain: 6db or 0db

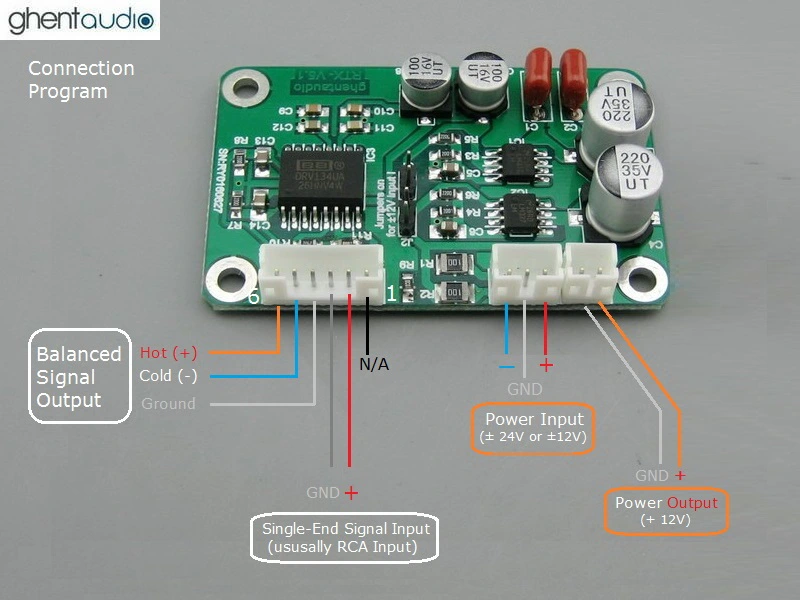

  • Signal input: 1/ch unbalanced RCA
  • Signal output: balanced 3pin XLR signals
  • AUX Out: 12V (for LED light, please put a resistor in series)

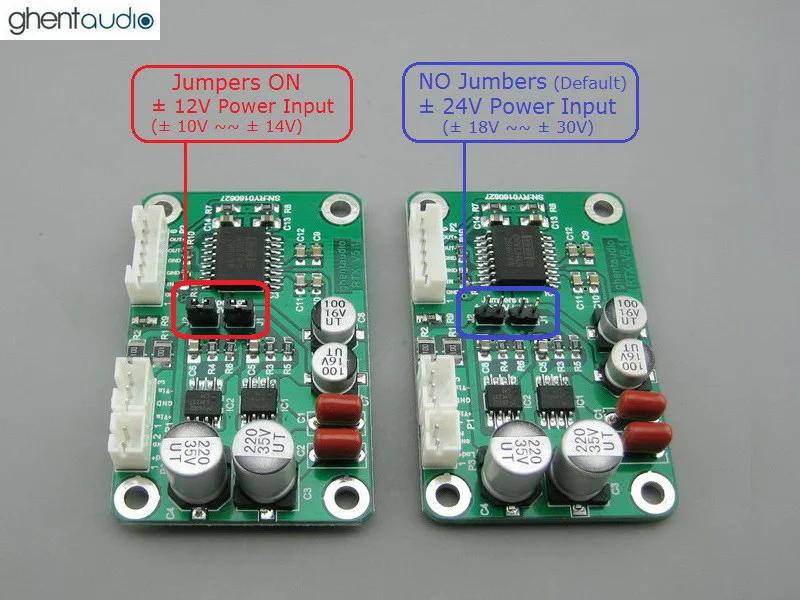

  • Dual Voltages Supply: Default ±24V (±18V ~ ±30V), or ±12V (±10V ~ ±14V) when jumpers on

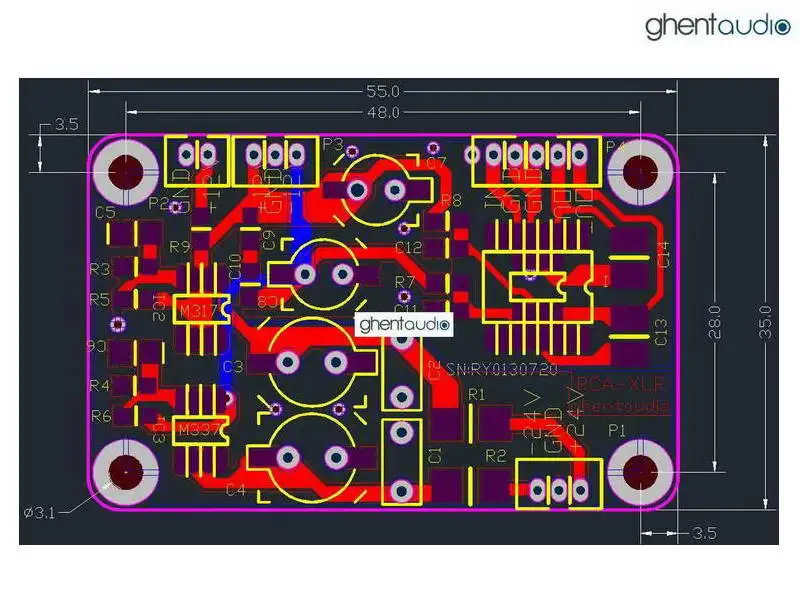

  • Size: 55mm(L) x 35mm(W)

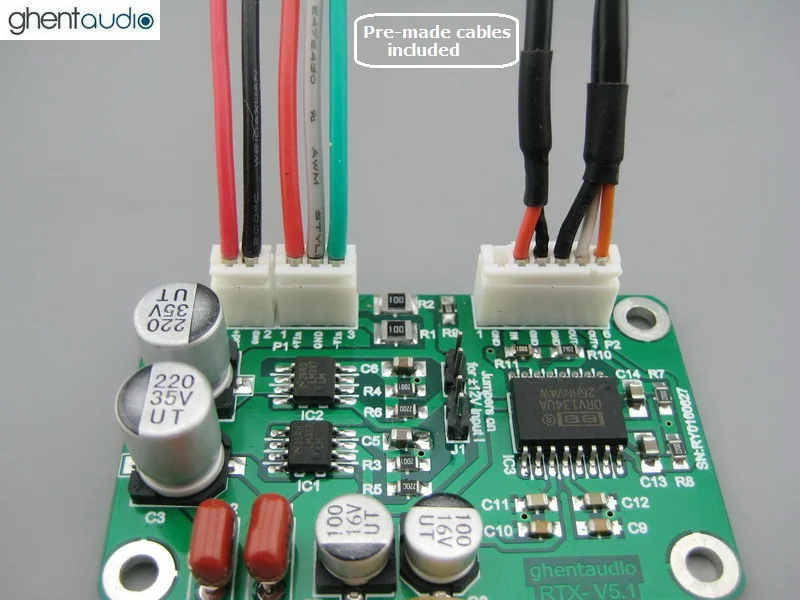

Packing List

  • RTX Module x 1
  • Jumper(2pin) x 2
  • 6pin Signal Cable (30cm) x 1
  • 3pin Supply Cable (30cm) x 1
  • 2pin AUX(LED) Cable (30cm) x 1
  • Brass stud (M3 x 10) x 4
  • Counter sunk Screw (M3 x 8) x 4
  • Panhead Screw (M3 x 6) x 4
