(B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF

SKU:
0.0 (0)
1 Sold
$165.00 $0.00

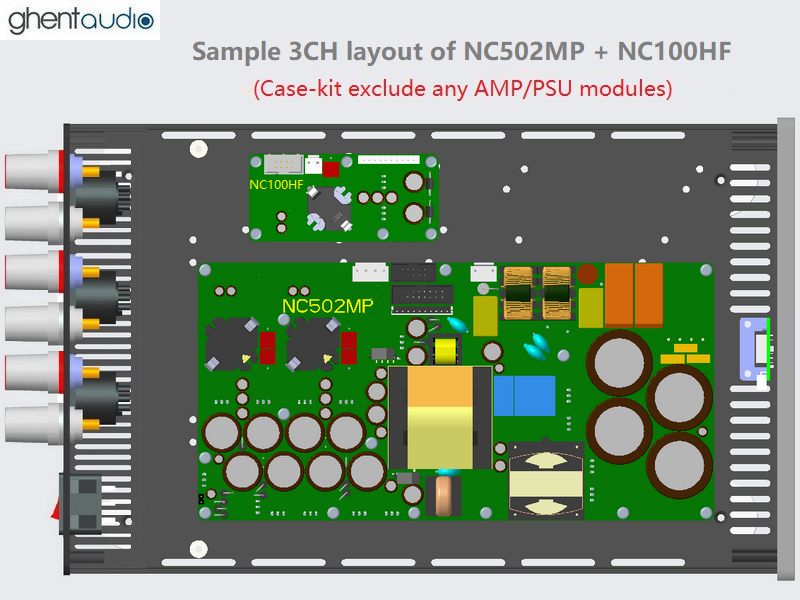

B-series 3CH case-kit, applicable modules are:
------ NC502MP+NC100HF
------ Pre-made harness included
------ Mogami signal cable, Belden speaker cable
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
1/1
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315c-T3) DIY 3CH Case-kit for Hypex NC502MP+NC100HF
  • (B265a-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B315b-M6) DIY Mono Case-kit for Hypex Nilai500(PS500DIY)
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B315b-T1 (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp
  • Pre-drilled for applicable modules (case-kit excluding any modules)
  • Input: we provide two kinds of XLR options：
    ---Soldering: GP110 Gold-plated XLR socket
    ---Screw-Type: GP111 Gold-plated XLR socket

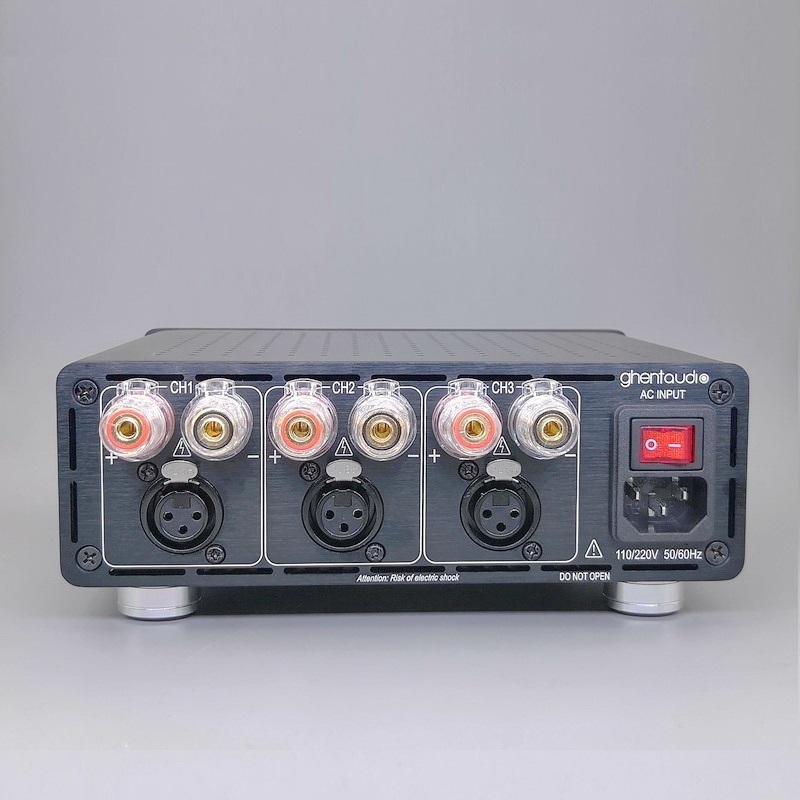

  • Output: GP100 Gold-plated Binding posts (included)
  • Solderless: It would be a solderless kit if choosing screw-type XLR

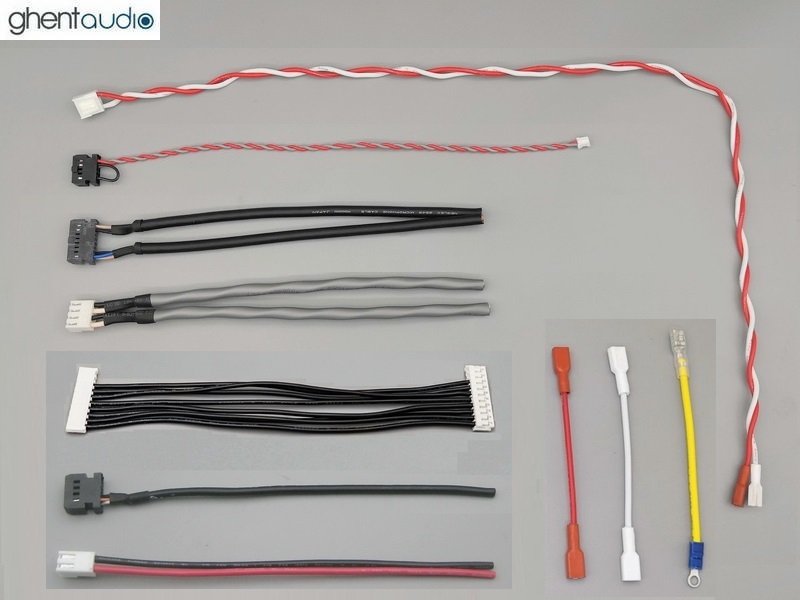

Internal Harness (Free included)
  • Mains harness: from AC-Inlet to NC502MP
  • HBUS harness: from NC502MP to NC100HF
  • LED harness: from NC502MP to LED board
  • Signal Input(2pcs): from XLR to two modules (Mogami OFC W2549 shielded signal cable)
  • Speak output(2pcs): from two modules to Binding Posts (Belden 8471 speaker cable)


Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 315mm(D)
  • External size: 200mm(W) x 78mm(H) x 326mm(D)
    (External size including feet, excluding connectors)
  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules
  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set		 AC-Inlet & Switch x 1
XLR socket x 3
Binding Post(Pair) x 3
Dimmer-LED x 1
Internal Harness
