(B265a-M2) DIY Mono Case-kit for Ncore NC500 OEM & Adapter

Name: (B265a-M2) DIY Mono Case-kit for Ncore NC500 OEM & Adapter
Brand: ghentaudio Do something for HiFi Fans
SKU: B265a-M2
Price: 135 USD
Availability: InStock

0.0 (0)

10 Sold

$135.00

B-series Mono case-kit, applicable modules are:
------ SMPS1200 + NC500 OEM & Adapter
------ NC500/NCx500 are the same size/installation holes
------ Custom drilling for other suitable modules

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Face-plate:
LED color:
XLR Type:

Quantity:

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: B265a-M2 (B-series Encloser)
100% Aluminum, the best thermal material for amp

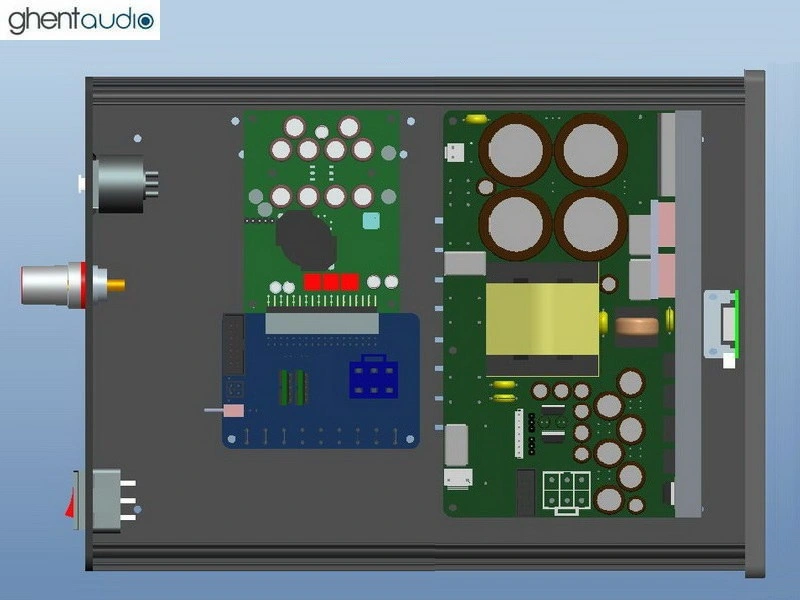

Mono(1CH) case pre-drilled for SMPS1200 + NC500 OEM & Adapter
(case-kit excluding any modules)

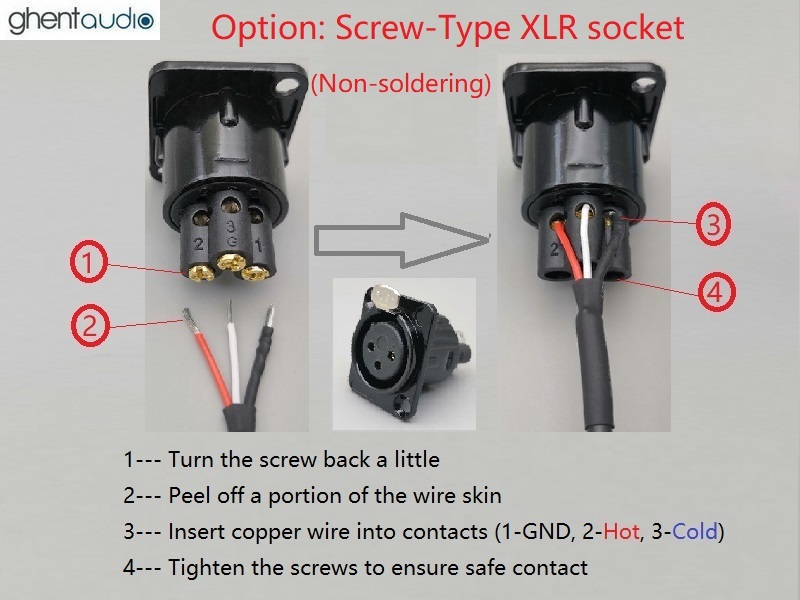

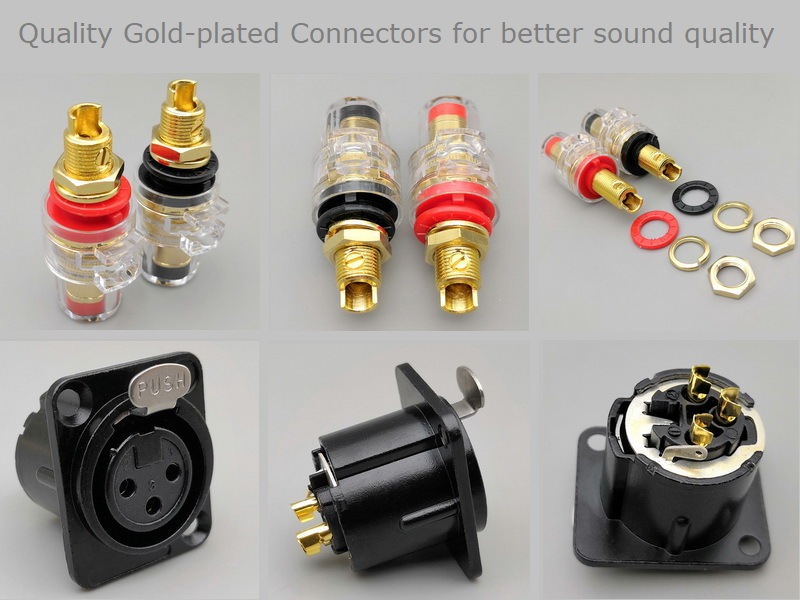

Input: GP110 Soldering XLR socket, or GP111 Screw-Type XLR socket
Output: GP100 Gold-plated Binding posts (included)

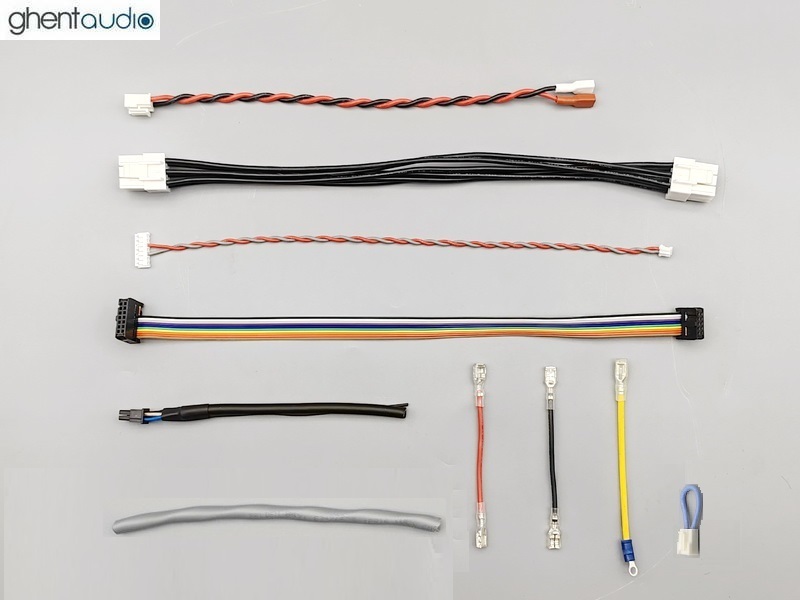

Internal Harness (Free included)

Mains wires-1: from AC-Inlet to PSU
Mains wires-2: from SMPS1200 to NC500OEM
AUX Interface: from SMPS1200(IDC-10P) to NC500OEM(IDC-14P)
Signal Input: from XLR socket to NC500OEM
Speak output: from NC500OEM to Binding Posts
LED wire: from PSU to LED board

Case Specification

Internal size: 193mm(W) x 58mm(H) x 265mm(D)
External size: 200mm(W) x 78mm(H) x 276mm(D)
(External size including feet, excluding connectors)

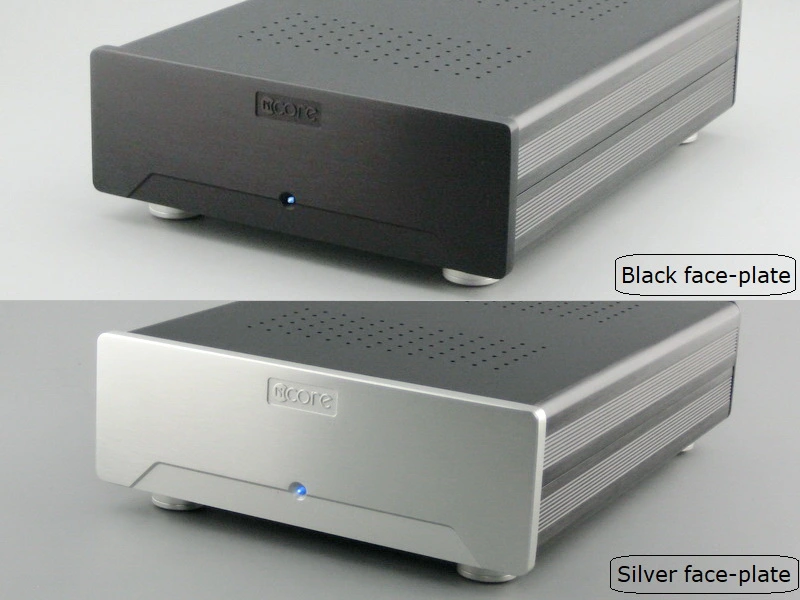

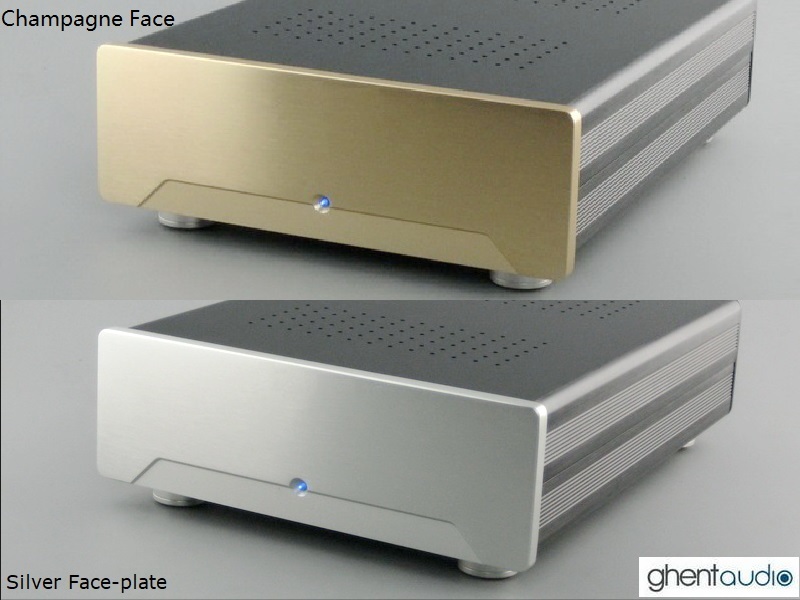

Case Finish: Full-Black or Silver-Face with Black body

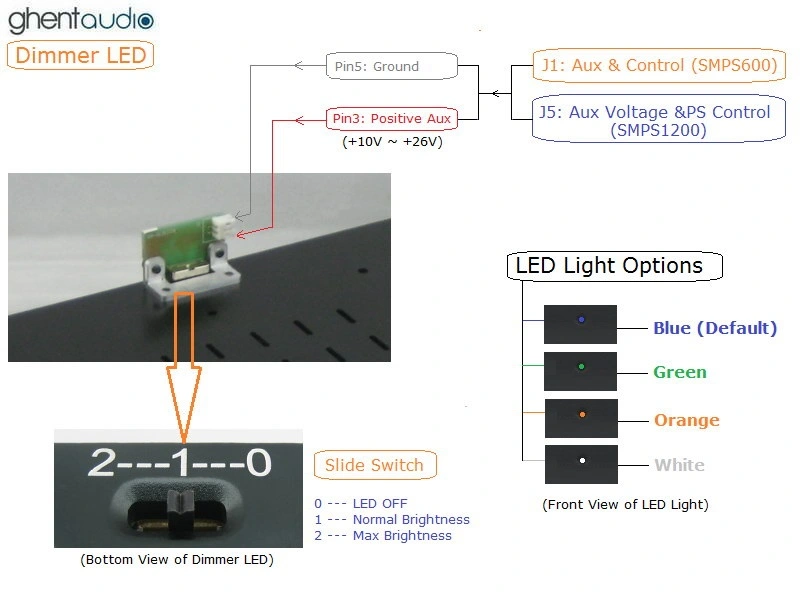

LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules

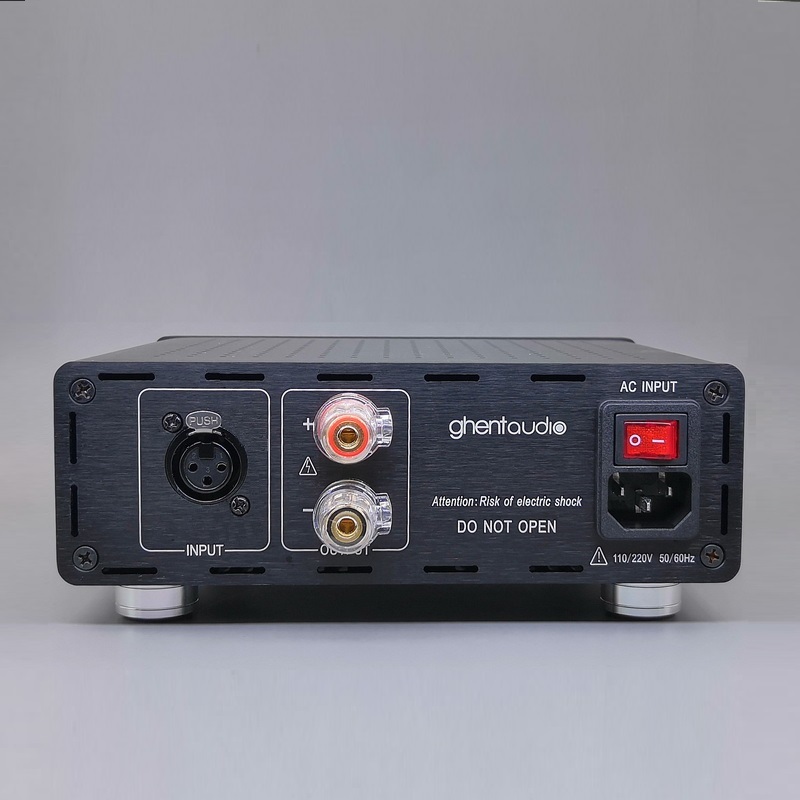

Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 XLR socket x 1 Binding Post(Pair) x 1 Dimmer-LED x 1 Internal Harness
