XHP-20 Housing & Contact (20-ways)

SKU:
0.0 (0)
0 Sold
$1.55 $0.00
Each set including:
--- 1 x XHP-20 Housing
--- 20 x Crimp Contacts(pins)
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • XHP-20 Housing & Contact (20-ways)
  • XHP-15 Housing & Contact (15-ways)
  • XHP-16 Housing & Contact (16-ways)
  • XHP-20 Housing & Contact (20-ways)
  • XHP-20 Housing & Contact (20-ways)
  • XHP-15 Housing & Contact (15-ways)
  • XHP-16 Housing & Contact (16-ways)
  • XHP-20 Housing & Contact (20-ways)
1/1
  • XHP-20 Housing & Contact (20-ways)
  • XHP-15 Housing & Contact (15-ways)
  • XHP-16 Housing & Contact (16-ways)
  • XHP-20 Housing & Contact (20-ways)
  • Description

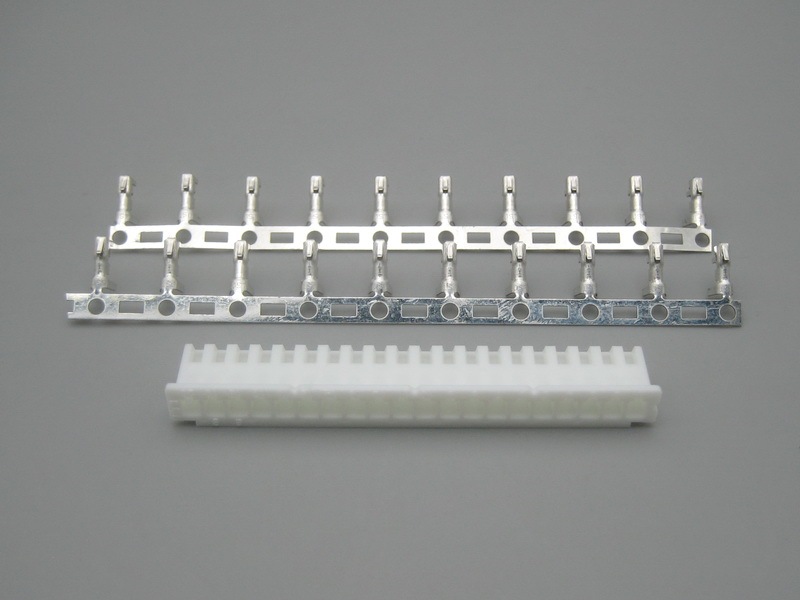

Each set including

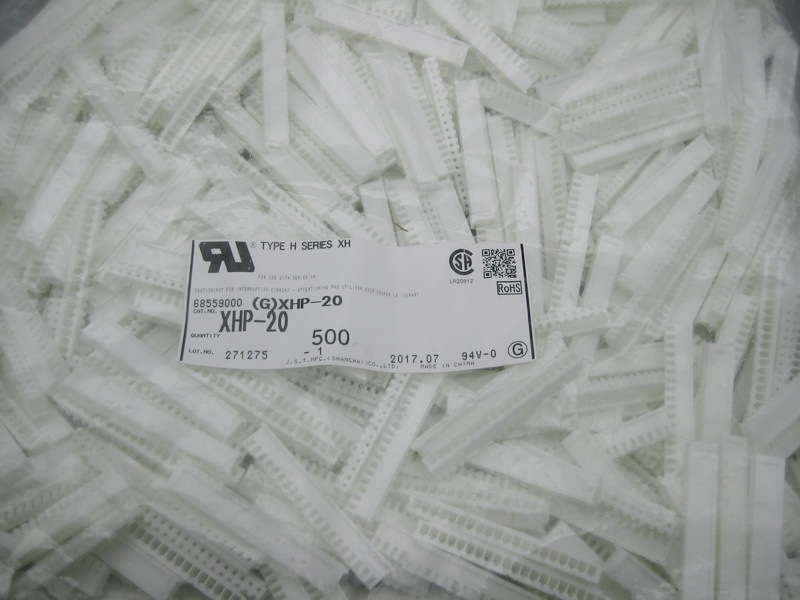

  • 1 x XHP-20 Housing
  • 20 x Crimp contacts(pins)

Features & Specifications
  • JST: JAPAN SOLDERLESS TERMINALS, The Quality Connection

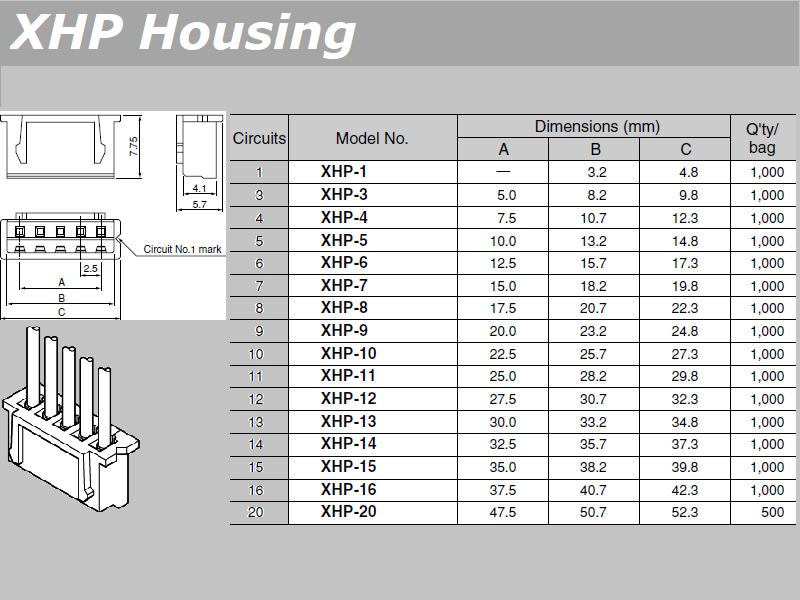

  • Housing Manufacturer Part No: XHP-20
  • No. of Ways: 20

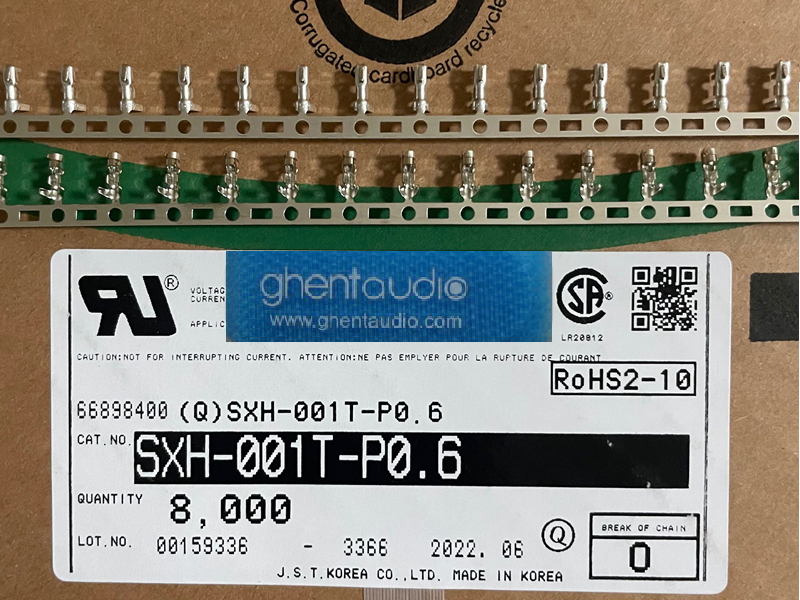

  • Conatct Manufacturer Part No: SXH-001T-P0.6
  • 2.5mm pitch/Disconnectable Crimp style connector
  • Pitch Spacing: 2.5mm, Material: Nylon 6.6, Colour: White
  • Applicable wire: AWG #28 to #22, Crimp style
  • Contact Plating: Tin, Contact Material: Phosphor Bronze
  • Current rating: 3A AC, DC (AWG #22), Voltage rating: 250V AC, DC
  • Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
  • Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max.
  • Insulation resistance: 1,000M ohm min., Withstanding voltage: 800V AC/ minute
