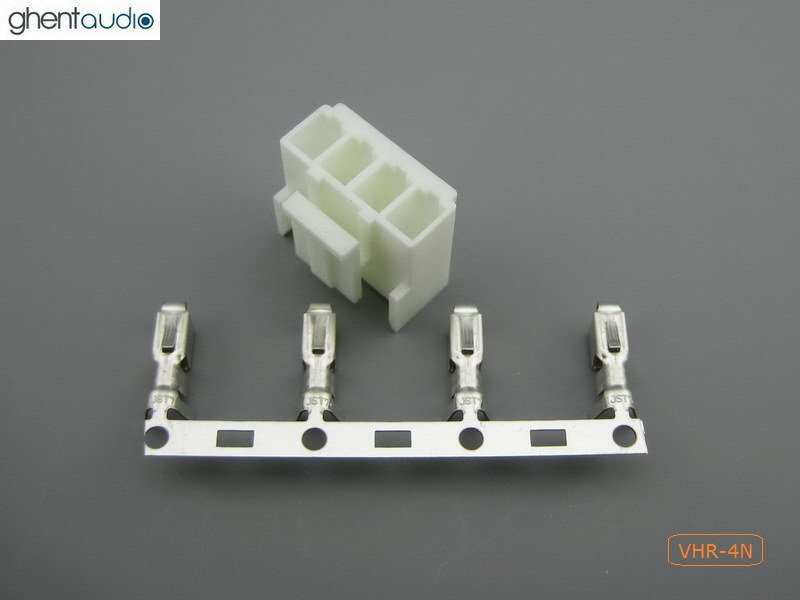

VHR-4N Housing & Contact (4-ways)

Name: VHR-4N Housing & Contact (4-ways)
Brand: ghentaudio Do something for HiFi Fans
SKU: VHR-4N
Price: 1.5 USD
Availability: InStock

0.0 (0)

18 Sold

$1.50

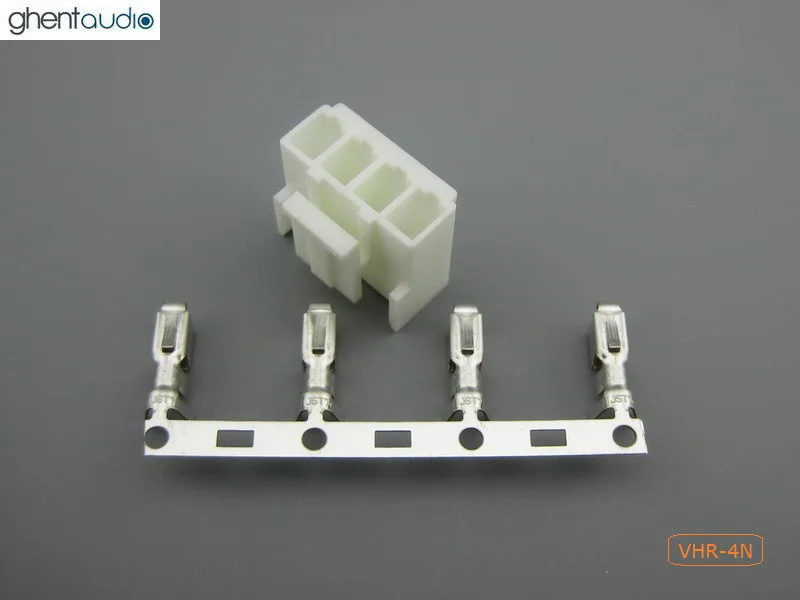

Each set including:
--- 1 x VHR-4N Housing
--- 4 x Crimp Contacts(pins)

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Each set including

1 x VHR-4N Housing
4 x Crimp contacts(pins)

Features & Specifications

JST: JAPAN SOLDERLESS TERMINALS, The Quality Connection

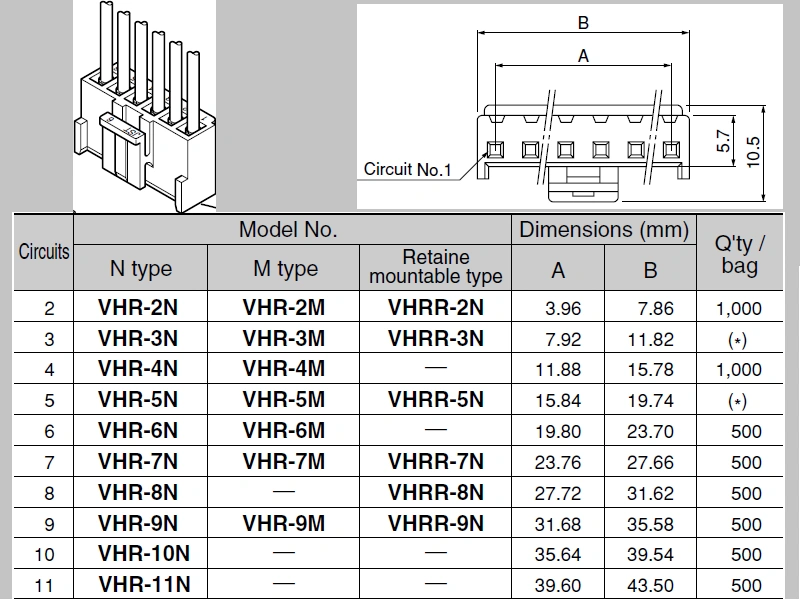

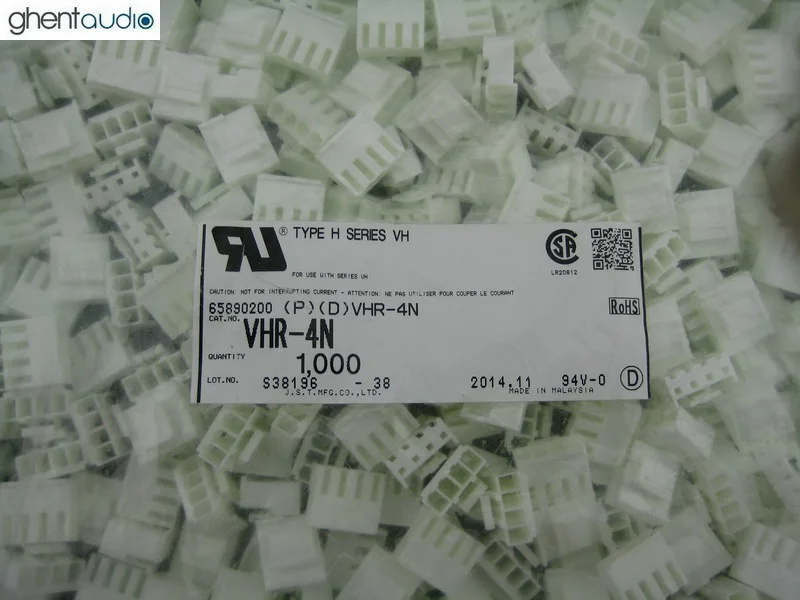

Housing Manufacturer Part No: VHR-4N
No. of Ways: 4

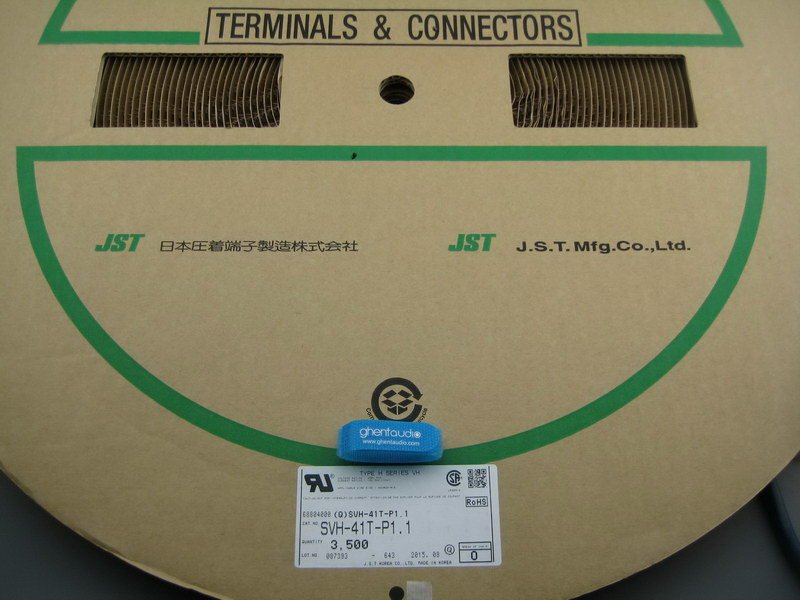

Conatct Manufacturer Part No: SVH-41T-P1.1
3.96mm pitch/Disconnectable Crimp style connector
Applicable wire: AWG #20 to #16, Insulation O.D. 1.7～3.0(mm), Crimp style
Contact Plating: Tin, Contact Material: Phosphor Bronze
Current rating: 10A AC, DC (AWG #16), Voltage rating: 250V AC, DC
Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max.
Insulation resistance: 1,000M ohm min., Withstanding voltage: 1500V AC/ minute
