Home > Custom Harness > Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness

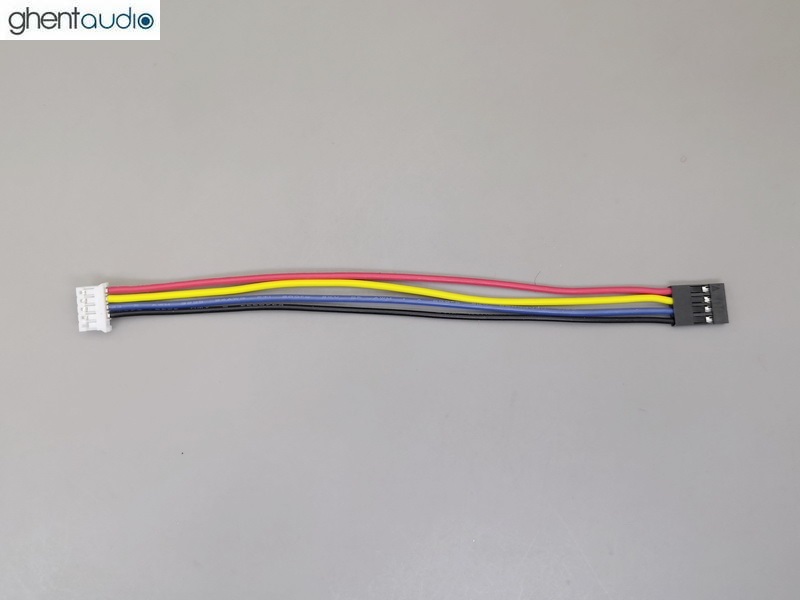

  • Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness
1/1
  • Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness
Share:

Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness (Special Pinout)

SKU:
0.0 (0)
0 Sold
$2.50 $0.00
  • PHR-5 Pin 1 -> Dupont-4P Pin 2      RED
  • PHR-5 Pin 2 -> Dupont-4P Pin 3      YELLOW
  • PHR-5 Pin 3 -> Dupont-4P Pin 4      BLUE
  • PHR-5 Pin 4 -> Dupont-4P Pin 1      BLACK
  • PHR-5 Pin 5 -> Not connected         No wire
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Length:
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness
  • Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness
1/1
  • Custom PHR-5 to Dupont-4P(2.54mm) Wiring Harness
  • Description
Detail Pinput
  • PHR-5 Pin 1 -> Dupont-4P Pin 2      RED
  • PHR-5 Pin 2 -> Dupont-4P Pin 3      YELLOW
  • PHR-5 Pin 3 -> Dupont-4P Pin 4      BLUE
  • PHR-5 Pin 4 -> Dupont-4P Pin 1      BLACK
  • PHR-5 Pin 5 -> Not connected         No wire

Features & Specifications
  • Qty: 1pc
  • Length: 15cm
  • Housing Part No-1: JST PHR-5
  • Housing Part No-2: Dupont 2.54mm 4P
  • Silicone wire: UL3239, 24AWG(Max), stranded copper wire, Silicone insulation (-65℃ to +200℃)
