(PC01-SGW) 24P---24P ATX Power Cable (Mundorf Silver/Gold)

Name: (PC01-SGW) 24P---24P ATX Power Cable (Mundorf Silver/Gold)
Brand: ghentaudio Do something for HiFi Fans
SKU: PC01-SGW
Price: 925 USD
Availability: InStock

0.0 (0)

1 Sold

$925.00

Standard 24P to 24P, Mundorf SGW - SilverGold Solid-Core Wires
--- SGW110YE/WH wires: Solid-core 18AWG, 0.785mm²
--- SGW115YE/WH wires: Solid-core 15AWG, 1.767mm²
Option: JSSG360 Dual-sheilding
Solid-core is stiff wire, "spare-length" is needed than normal usuage

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Wire AWG:
Length::

Quantity:

Add to Favorites (0)

1/1

Description

Kindly Reinder

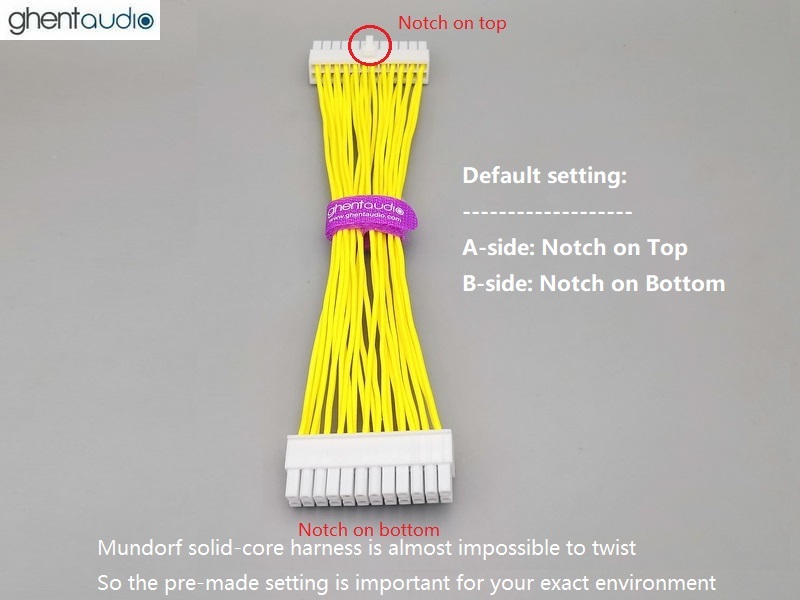

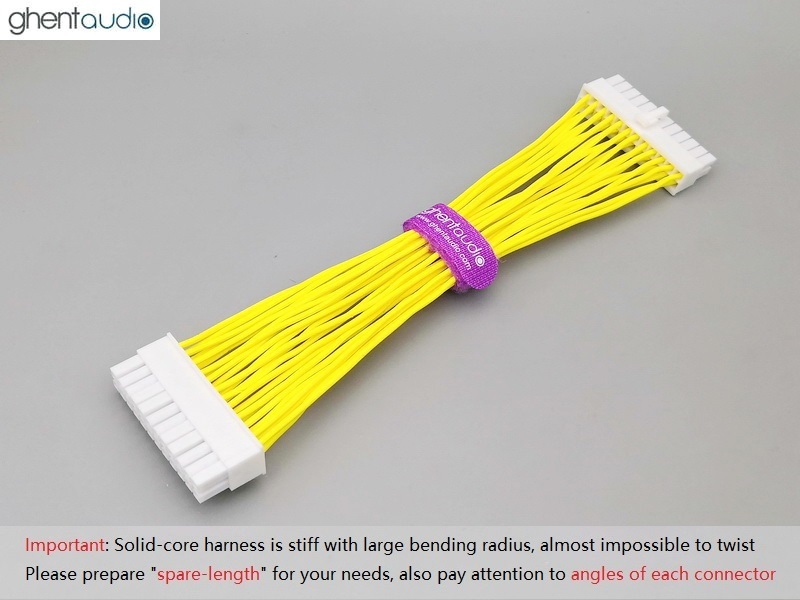

Solid-core harness is stiff with large bending radius, almost impossible to twist
Please prepare "spare-length" for your needs, also pay attention to angles of each connector
Please mail us details once placing order, so we could prepare everything well in advance for you;
Return is NOT acceptable if no quality issue, thanks your understanding;

Introduction

24P---24P standard ATX power supply cable, suitable for all standard Motherboard
Pinout: 1-1, 2-2, 3-3...... 24-24 (Identical pinout on both ends)
Cable Length: Including the length of connectors at two ends

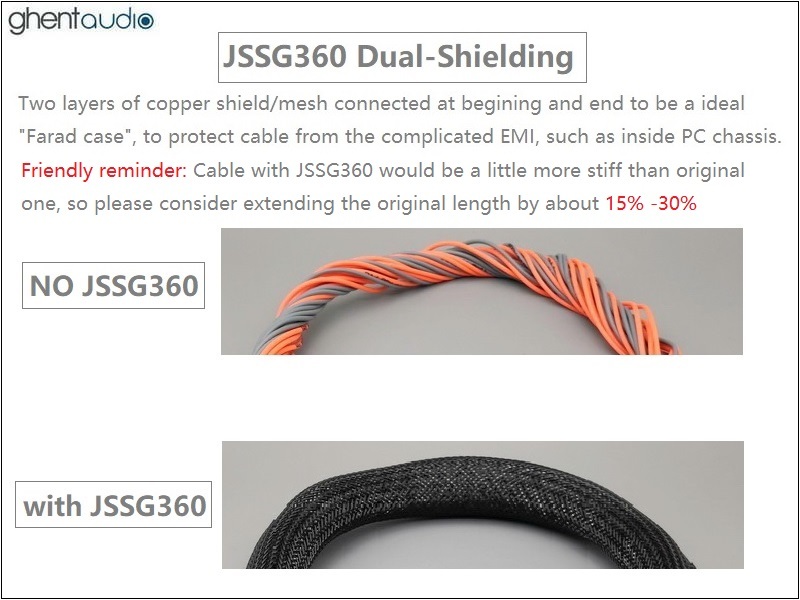

JSSG360(option): Two layers of copper shield mesh to protect cable from the complicated EMI(Black sleeved)

Hook-up wires

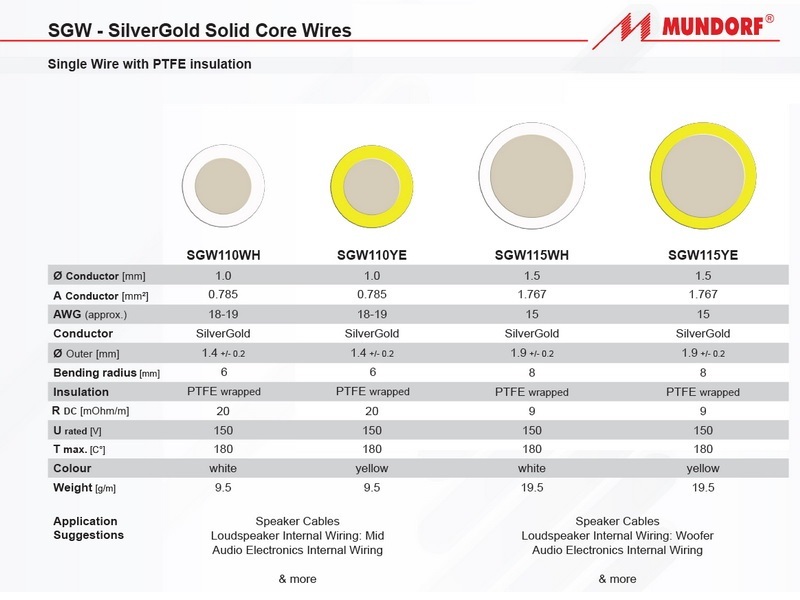

SGW110YE/WH: Mundorf SGW - SilverGold Solid-core 18AWG, 0.785mm²
SGW115YE/WH: Mundorf SGW - SilverGold Solid-core 15AWG, 1.767mm²

Order Handling / Custom Length

Handing time: 3-4 business days, since all cables are handmade carefully, thanks your patience
Up-Level price policy for custom length: 0.35m = 0.5m, 1.2m = 1.5m, ...
Welcome any other questions, please mail to ghentxu@ghentaudio.com to contact us
