Home > Parts --- DC Cable > Mundorf SGW SilverGold 1.5mm PTFE 15AWG Solid-Core Wire(1ft/0.3m)

SGW115: Mundorf SilverGold 1.5mm (15AWG) PTFE Solid-Core Wire(1ft/0.3m)

SKU: SGW115YE
0.0 (0)
1 Sold
$88.50 $0.00
Mundorf SGW SilverGold 1.5mm wire , Solid-Core 15AWG(1.7671 mm²)
99% silver + 1% gold = 100% music
--- SGW115YE: Yellow PTFE Insulation
--- SGW115WH: White PTFE Insulation
Sold by per foot (0.3m):
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Please select the information you wantX
Quantity:
  • Mundorf SilverGold Solid-Core 1.5mm PTFE Wire(1ft/0.3m)
  • SGW115: Mundorf SilverGold 1.5mm (15AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • Mundorf SilverGold Solid-Core 1.5mm PTFE Wire(1ft/0.3m)
  • SGW115: Mundorf SilverGold 1.5mm (15AWG) PTFE Solid-Core Wire(1ft/0.3m)
1/1
  • Mundorf SilverGold Solid-Core 1.5mm PTFE Wire(1ft/0.3m)
  • SGW115: Mundorf SilverGold 1.5mm (15AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • Description
Price: sold by per foot (0.3 meter)

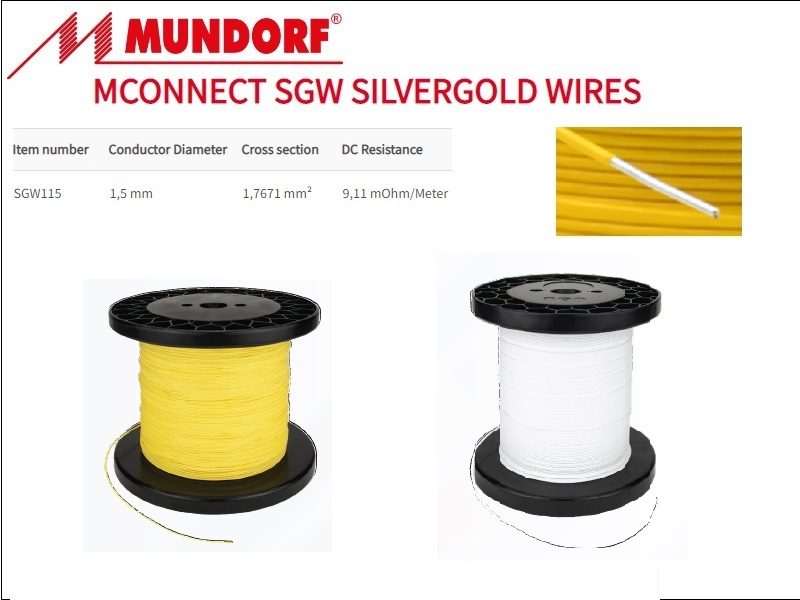

Mundorf SGW: SilverGold Solid Core Wire with PTFE Insulation
99% silver + 1% gold = 100% music

Mundorf`s SGW115, 1.5mm silver/gold wire, is composed of 99% silver and 1% gold, single-core wire.
As used in their highly regarded interconnect and speaker cables.
The wire`s maximum rating is 250Vac and 1250Vdc.
Available as bare wire or PTFE sleeved, coloured white or yellow - the overall diameter of sleeved wire is 1.75mm.
No limit to length. Sold as a continuous length.

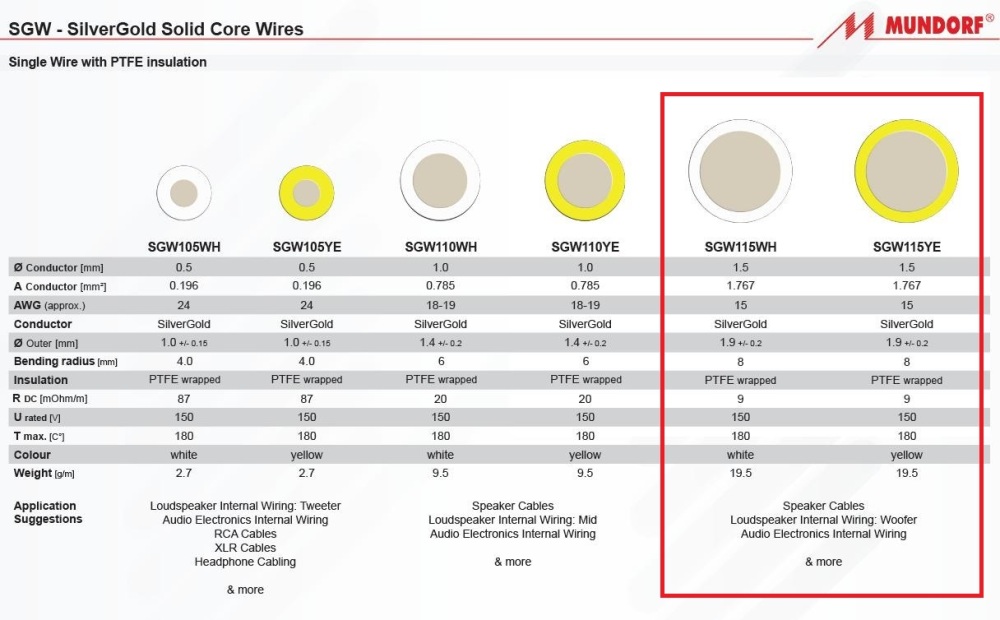

Features & Specifications
  • Conductor [mm]: 1.5mm SilverGold
  • Purity of silver: min. 99.97% typ. 99.99%
  • Purity of gold: min. 99.97% typ. 99.99%
  • Insulation test voltage 2 500V DC
  • Conductor diameter: 1.5 mm (15AWG)
  • DC Resistance: 9.11 mOhm/Meter
  • Max. operating voltage 250V AC
  • Strength of PTFE insulation: min. 0.25 mm
  • Conductor [mm²]: 1.767 mm²
  • AWG (approx.): 15 (more than 15AWG)
  • Insulation: PTFE Insulation
  • Inner diameter: 1.5 mm
  • Outer diameter: 1.9 mm
  • Bending radius [mm]: 8mm
