  • (DR1-BP4-1) 4CH Rear-plate for D-series
1/1
  • (DR1-BP4-1) 4CH Rear-plate for D-series
Share:

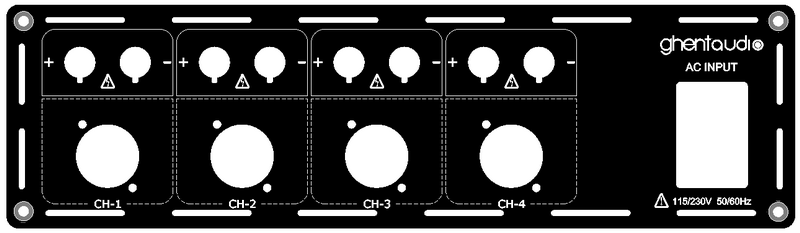

(DR1-BP4-1) 4CH Rear-plate for D-series

SKU:
0.0 (0)
0 Sold
$36.00 $0.00
Applicable Encloser: D-series 300mm(W) x 84mm(H)
Type: 4CH
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (DR1-BP4-1) 4CH Rear-plate for D-series
  • (DR1-BP4-1) 4CH Rear-plate for D-series
1/1
  • (DR1-BP4-1) 4CH Rear-plate for D-series
  • Description
Applicable Encloser: D-series 300mm(W) x 84mm(H)



Brief & Features
  • Standard 4CH mode
  • AC-Entry located on the right side
  • D-shape housing (XLR / RCA / 6.35...) as signal inputs
  • Binding posts outputs
  • Color: Black
  • Size: 300mm(W) x 85mm(H) x 3mm(D)

Cut-out for connectors
  • Input(XLR default): Φ24mm (Any standard D-housing socket is applicable)
  • Output(Binding Post): Φ11.5mm
  • AC-Entry: 40x27mm (for JEC JR-101-1FSA)

Packing List
  • Rear-plate: 1pc
  • M4 x 10/12mm(Counter-sunk, Black), 4pcs
