  • (BR2-BP1-XR) Mono Rear-plate for B-series
1/1
  • (BR2-BP1-XR) Mono Rear-plate for B-series
Share:

(BR2-BP1-XR) Mono Rear-plate for B-series

SKU:
0.0 (0)
0 Sold
$23.00 $0.00
Applicable Encloser: B-series 200mm(W) x 65mm(H)
Type: Mono
AC-Entry at the left
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (BR2-BP1-XR) Mono Rear-plate for B-series
  • (BR2-BP1-XR) Mono Rear-plate for B-series
1/1
  • (BR2-BP1-XR) Mono Rear-plate for B-series
  • Description

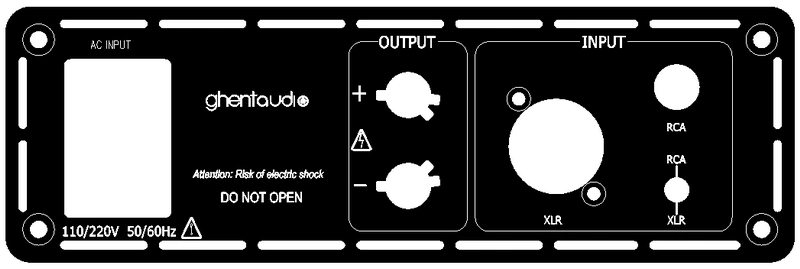

Applicable Encloser: B-series 200mm(W) x 65mm(H)


Brief & Features
  • Standard Mono mode
  • AC-Entry located on the Left side
  • Two inputs(XLR and RCA inputs, switched by toggle switch)
  • Binding posts output
  • Color: Black
  • Size: 200mm(W) x 65mm(H) x 3mm(D)

Cut-out for connectors
  • Input(RCA): Φ11.3mm
  • Input(XLR): Φ24mm (Any standard D-housing socket is applicable)
  • Toggle-switch: Φ6mm
  • Output(Binding Post): Φ11.5mm
  • AC-Entry: 40x27mm (for JEC JR-101-1FSA)

Packing List
  • Rear-plate: 1pc
  • M4 x 10/12mm(Counter-sunk, Black), 4pcs
