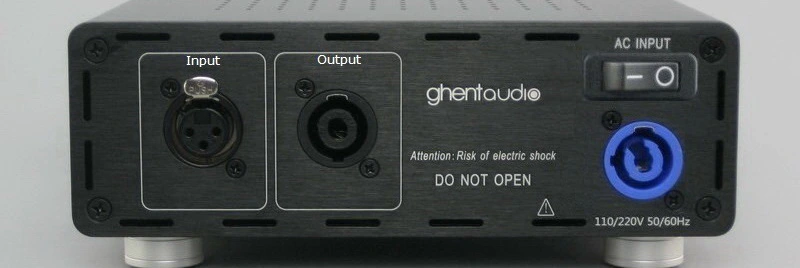

(BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series

SKU:
0.0 (0)
0 Sold
$24.00 $0.00
Applicable Encloser: B-series 200mm(W) x 65mm(H)
Type: Mono
speakON / powerCON
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
1/1
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
  • (BR1-SP1-3) Mono Rear-plate(speakON & powerCON) for B-series
  • Description
Applicable Encloser: B-series 200mm(W) x 65mm(H)


Brief & Features
  • Standard Mono mode
  • AC-Entry: combo of separate powerCON and Rocker-Switch
  • D-shape housing (XLR / RCA / 6.35...) as signal input
  • D-shape housing (speakON default) as speaker output
  • Color: Black
  • Size: 200mm(W) x 65mm(H) x 3mm(D)

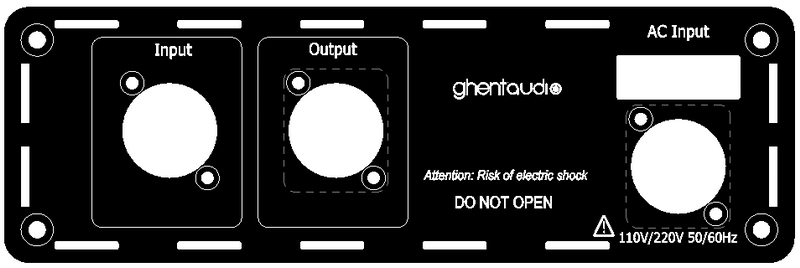

Cut-out for connectors
  • Input(XLR default): Φ24mm (Any standard D-housing socket is applicable)
  • Output(speakON default): Φ24mm (Any standard D-housing socket is applicable)
  • Rocker-Switch: 30x11mm (for Arcolectric C1300 series)
  • AC-Entry(powerCON): Φ24mm

Packing List
  • Rear-plate: 1pc
  • M4 x 10/12mm(Counter-sunk, Black), 4pcs
