(B315b-M2) DIY Mono Case-kit for Purifi EVAL2

Name: (B315b-M2) DIY Mono Case-kit for Purifi EVAL2
Brand: ghentaudio Do something for HiFi Fans
SKU: B315b-M2
Price: 145 USD
Availability: InStock

0.0 (0)

16 Sold

$145.00

B-series Mono case-kit, 200 x 315mm ( case-kit exclude the amp/psu modules)
------ applicable for Purifi EVAL2 & SMPS1200A400

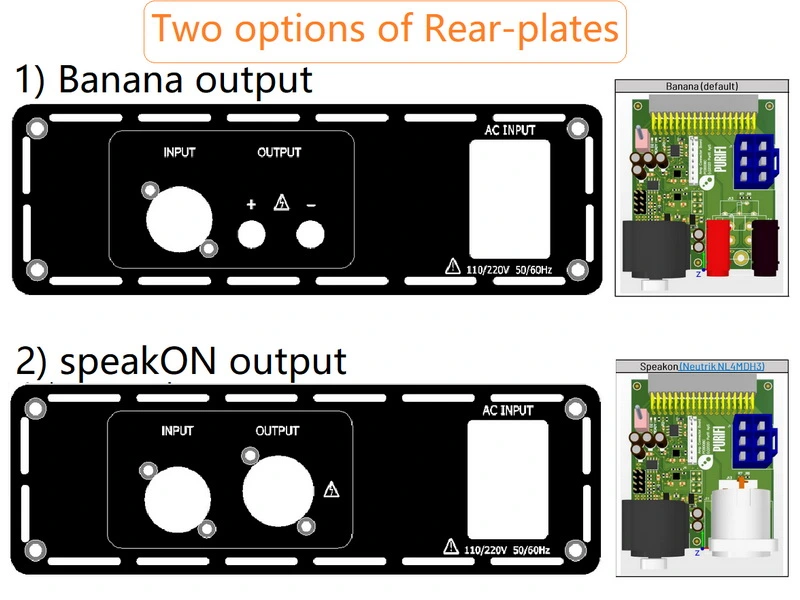

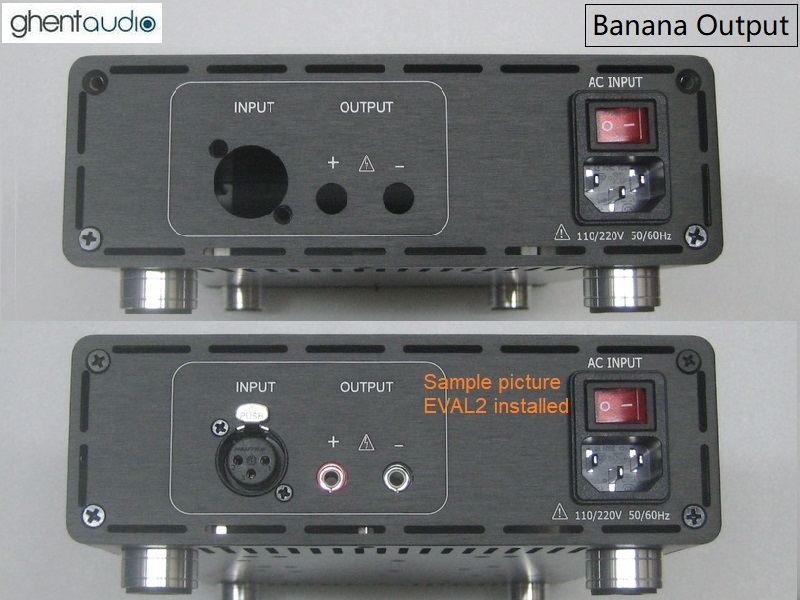

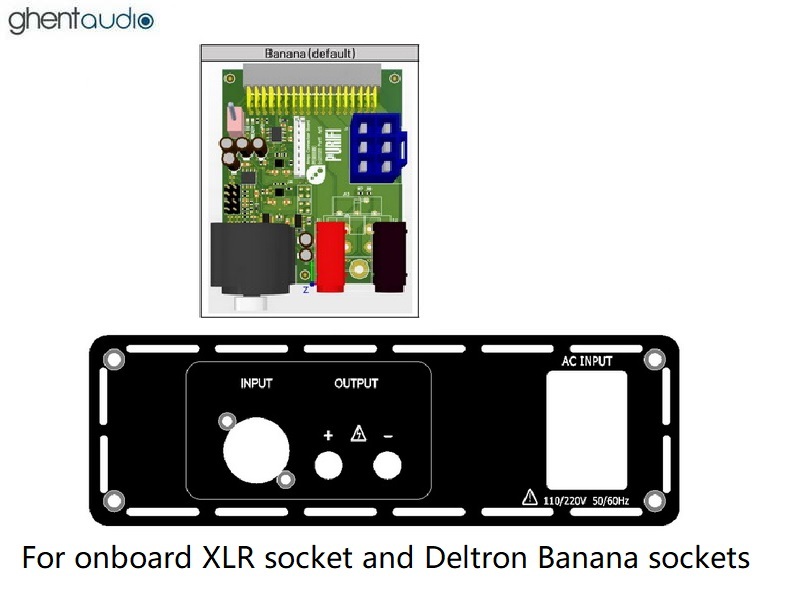

------ Two rear-plates for Banana or speakON outputs
------ Internal harness free included

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Face-plate:
LED color:
Rear-plate:

Quantity:

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: B315b-M2 (B-series Encloser)
100% Aluminum, the best thermal material for amp

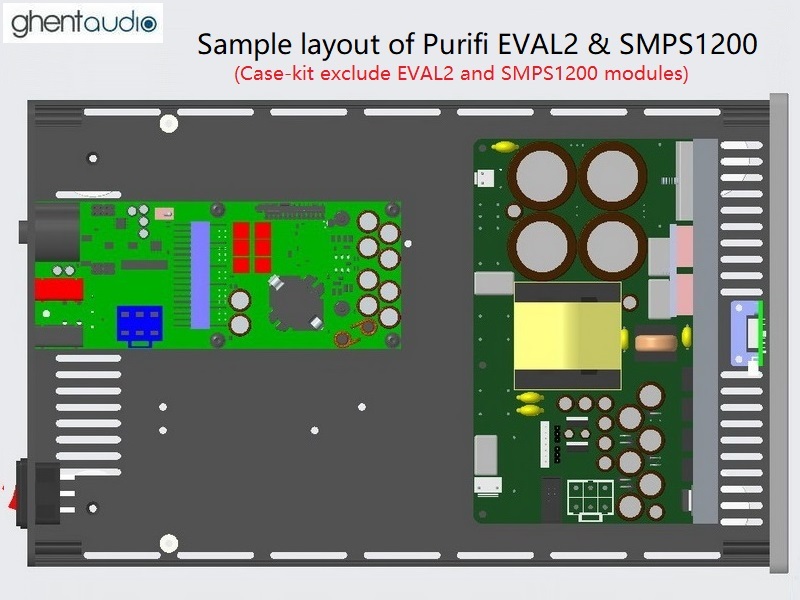

Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
Input/Output: attached on EVAL2 board

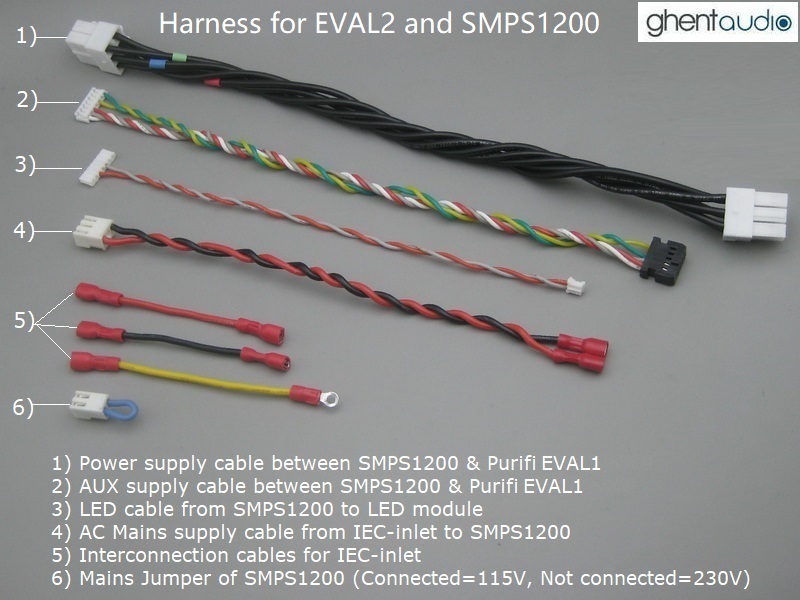

Internal Harness (Free included)

Mains Input: from AC-Inlet to PSU
High-power interconnect: from SMPS1200A400 to EVAL2
Low-power interconnect: from SMPS1200A400 to EVAL2
LED wire: from PSU to LED module
IEC-Inlet Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains

Case Specification

Internal size: 193mm(W) x 58mm(H) x 315mm(D)
External size: 200mm(W) x 78mm(H) x 325mm(D)
(External size including feet, excluding connectors)

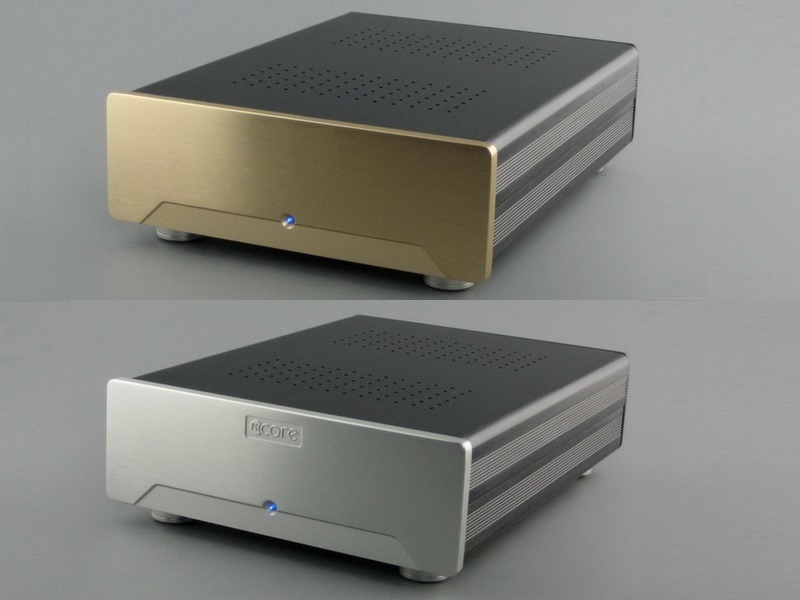

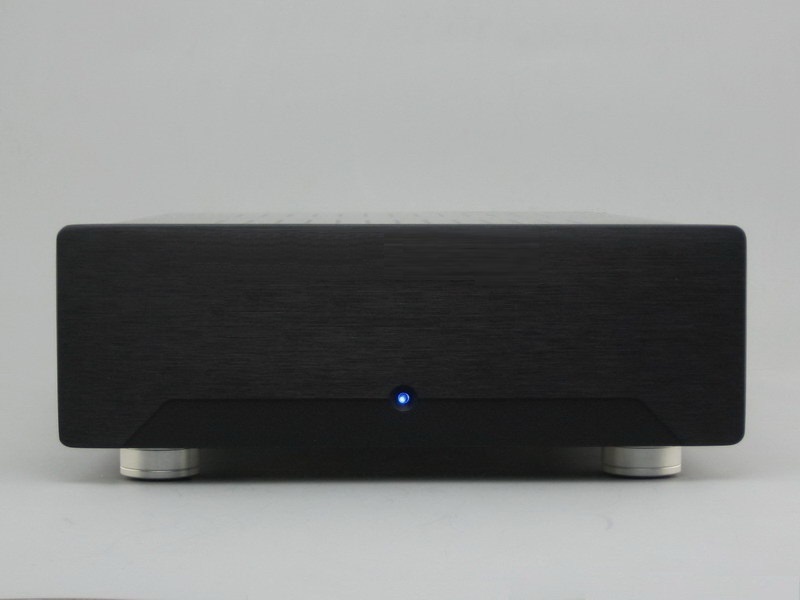

Case Finish: Full-Black or Silver-Face with Black body

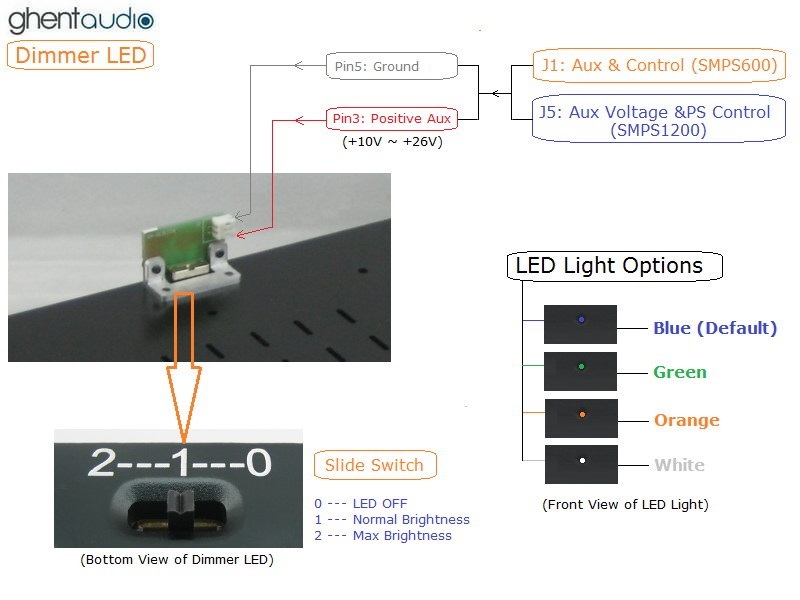

LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots

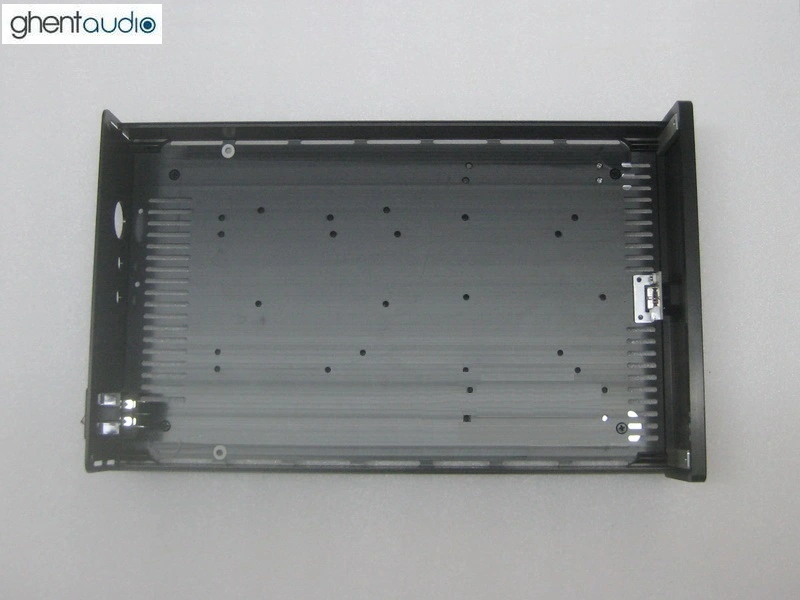

Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 2mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 Dimmer-LED x 1 Internal Harness
