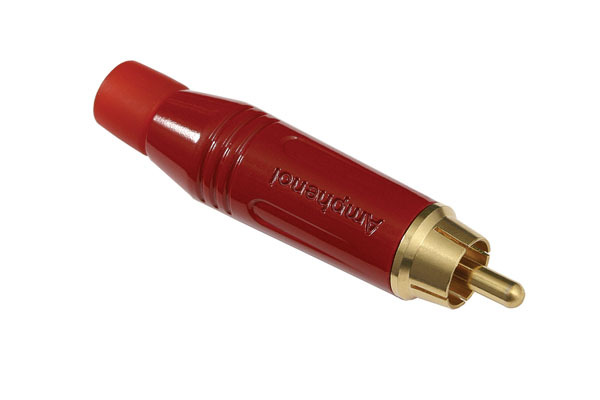

Amphenol ACPR-RED RCA Male Connector

SPECIFICATIONS:

• Positions: 2
• Finish: Red
• Gender: Male
• Contact Plating: Gold
• IP Rating: IP40
• Current Carrying Capacity: 10A (depending on mating connector)
• Termination: Solder
• Max Wire Gauge: 14AWG - 2.5mm²
• Flammability Rating: UL94V-0
• Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
• Typical Contact Resistance: < 10mΩ (Depends on mating connector)
• Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
• Operating Temperature: -25°C to + 75°C (-13°F to 167°F)
• Insertion and Withdrawal Force: > 10N - < 30N
• Cable OD Range: 3mm to 7mm (0.11" to 0.275")
• Mating Cycles: 500
• Housing Material: Diecast Zinc Alloy EZDA No.3
• Application(s): Audio & Lighting
